Digital Price Tags

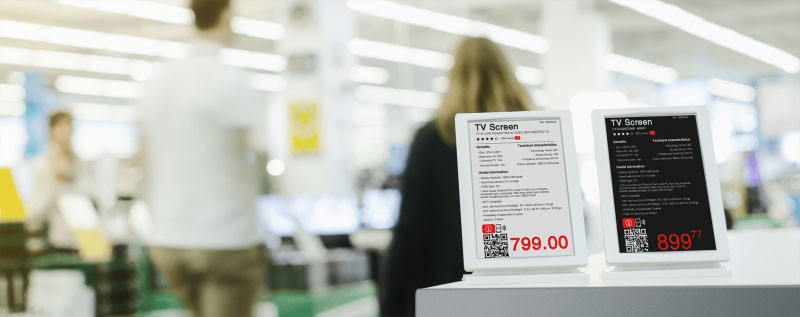

Digital price labelling systems enable centralised and dynamic control of prices directly at the shelf. Electronic price labels (ESL) update prices in real time and offer additional information via smartphone thanks to NFC technology.
The systems create the basis for digital processes such as mobile payment or automated shelf monitoring - and efficiently link stationary retail with e-commerce structures.
BKIT-NWT27
E-shelf labels B-goods demo kit Newton 2.7 inch - 70 labels + gateway
Demo kit with 70 Newton 2.7 inch e-labels, gateway and accessories - tested B-goods
The e-shelf labels demo kit contains everything you need to test or get started with digital price labelling. Ideal for evaluating hardware, software and infrastructure.
Scope of delivery:
70 x Newton 2.7 inch e-labels
1 x Newton gateway (2.4 GHz, POE-powered, without power supply unit)
approx. 90 x variable mounting plates (material: polycarbonate, colour: transparent)
1 x AIMS CMS licence (term: 3 years, max. 100 labels)

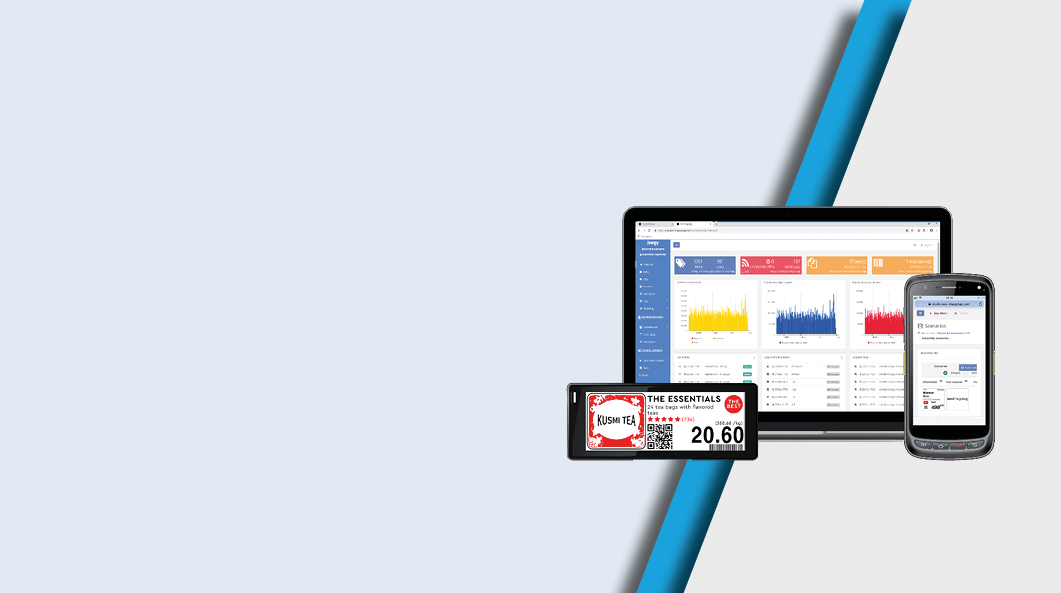

Software components: Dashboard, Template Designer, WebPDA for article matching, Swagger (API test environment), network configurator
1 x service (1 hour - e.g. configuration of AccessPoints, software installation, template creation)
Product specifications - Newton 2.7 inch E-Label:
Frame colour: White
Display colours: Black / White / Red
Resolution: 300 × 200 pixels
Visible display area: 57.3 × 38.1 mm
Up to 7 pages can be displayed
Battery life: up to 10 years (with 2 updates per day)
IP67-certified (dust and water resistant)
2 freely programmable buttons
7-colour LED (red, green, blue, yellow, cyan, magenta, white)

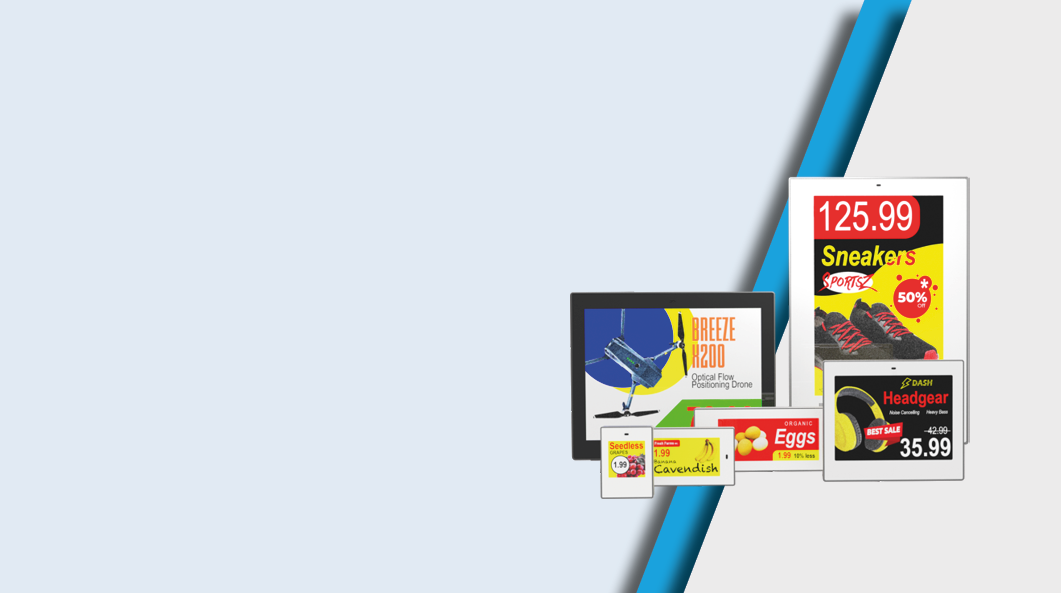

Note on B-goods:
These are goods from a customer return with approx. 1 year of use. All items have been fully tested, cleaned and are technically flawless. There may be adhesive residue or slight signs of use.
No right of return - please note before buying.
BKIT-NWT43
E-shelf labels B-goods demo kit Newton 4.3 inch - 70 labels + gateway
Demo kit with 70 Newton 4.3 inch e-labels, gateway and accessories - tested B-goods
This e-shelf labels demo kit is perfect for tests, pilot projects or getting started with digital price labelling. It contains all the necessary components - including software licence and setup service - as tested B-goods.
Scope of delivery:
70 x Newton 4.3 inch e-labels
1 x Newton gateway (2.4 GHz, POE-powered, without power supply unit)
approx. 90 x variable mounting plates (material: polycarbonate, colour: transparent)
1 x AIMS CMS licence (term: 3 years, max. 100 labels)
Software modules: Dashboard, Template Designer, WebPDA for article matching, Swagger (API test environment), network configurator
1 x service (1 hour - e.g. AccessPoint configuration, software installation, creation of templates)
Product specifications - Newton 4.3 inch E-Label:
Frame colour: Black
Display colours: Black / White / Red
Frequency: 2.4 GHz
Resolution: 522 × 152 pixels
Visible display area: 105.4 mm × 30.7 mm
Up to 7 pages can be displayed
Battery life: up to 10 years (with 2 updates per day)
IP67-certified (dust and water resistant)
2 freely programmable buttons
7-colour LED display (red, green, blue, yellow, cyan, magenta, white)
Gateway - Newton 2.4 GHz:
Access point for wireless communication with the Newton 2.4 GHz e-labels via a proprietary protocol. The access point is operated via Power over Ethernet (POE) - power supply unit not included.
Mounting plates - variable:
Material: Polycarbonate
Colour: Transparent
B-goods - may contain adhesive residue or other signs of use
AIMS CMS licence:
Licence period: 3 years
Licence scope: max. 100 active labels
Included modules: Dashboard, Template Designer, WebPDA, Swagger API test environment, Network Configurator
Service:
1 hour of professional support for setup, configuration, installation or creation of template settings.
Note on B-goods:
These are goods from a customer return. The hardware has been in use for approx. 1 year, has been fully tested, cleaned and is technically flawless. Please note: No right of return.

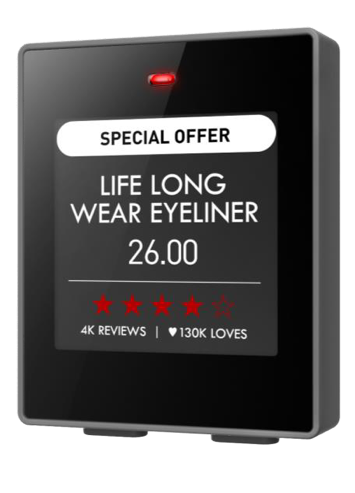

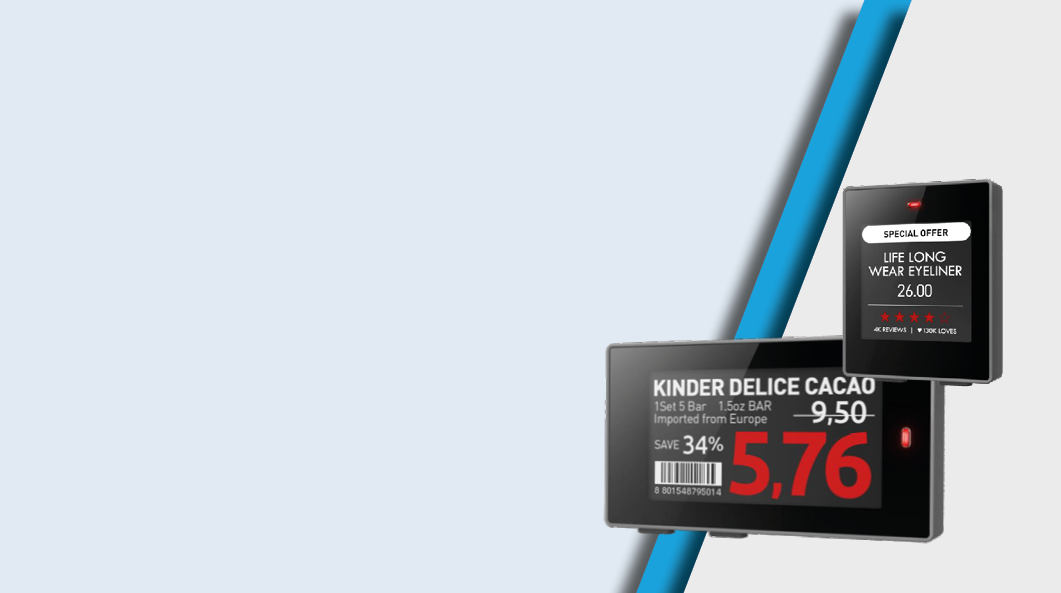

NWT16BWRB

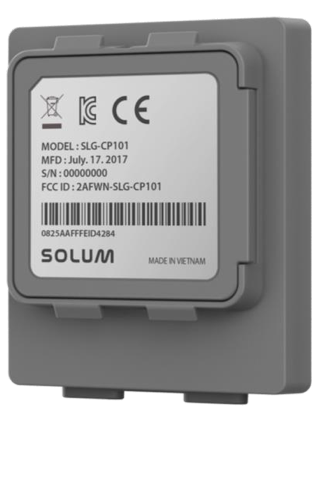

NEWTON 1.6 inch e-Ink label - black, BWR display, IP67
1.6" e-Ink label with colour display in black, white and red (BWR). Compact black frame, IP67-certified and ideal for shelf labelling in harsh environments. Up to 5 years battery life. Operation requires Newton Access Point (2.4 GHz) and AIMS management software.

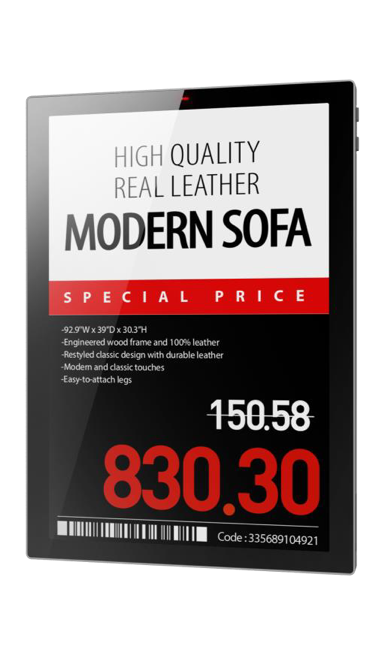

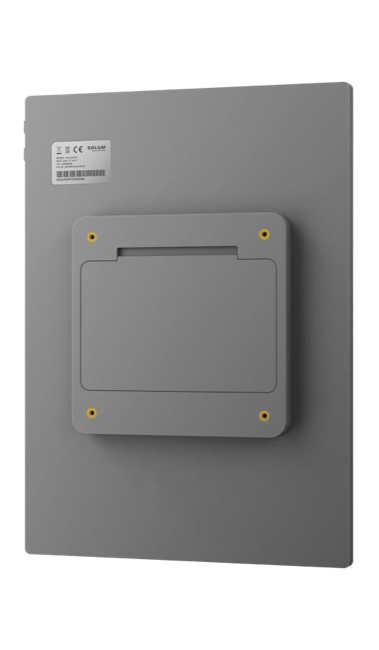

NWT116BWRB
NEWTON 11.6 inch e-Ink label - black, BWR display, IP67
11.6" e-Ink label with display in black, white and red (BWR). Robust black frame, IP67-certified, 2.4 GHz radio. Battery life up to 10 years. A Newton access point (2.4 GHz) and the AIMS software are required for operation.

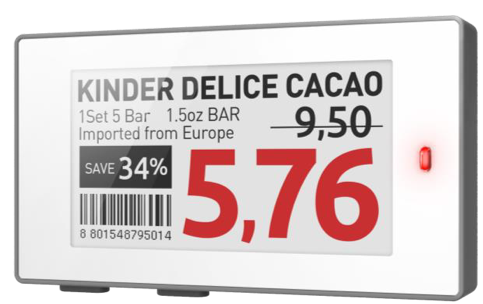

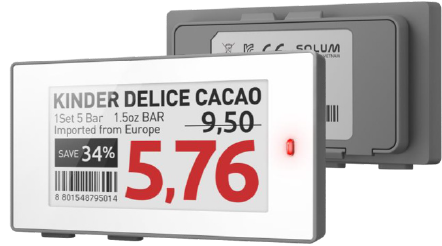

NWT22BWRW
NEWTON 2.2 inch e-Ink label - white, BWR display, IP67
2.2" e-Ink label with colour display in black, white and red (BWR). White frame, IP67-certified - ideal for price or shelf labelling in demanding environments. Up to 10 years battery life. Operation only with Newton Access Point (2.4 GHz) and AIMS management software.

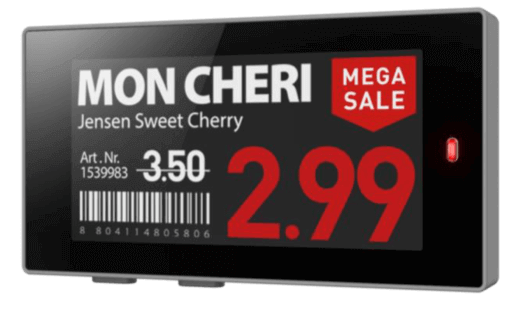

NWT26BWRB
NEWTON 2.6 inch e-Ink label - black, BWR display, IP67
2.6" e-Ink label with colour display in black, white and red (BWR). Black frame, IP67-certified, ideal for price, shelf or warehouse labelling. Up to 10 years battery life. Newton Access Point (2.4 GHz) and AIMS management software are required for operation.
Variants from €7.73*

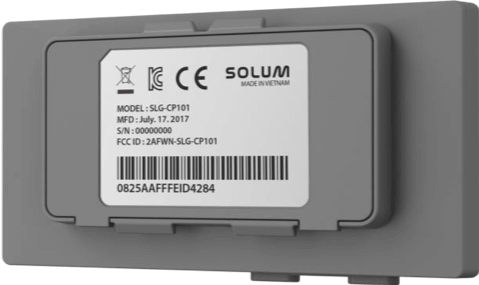

NWT26BWRW
NEWTON 2.6 inch e-Ink label - white, BWR display, IP67
2.6" e-Ink label with colour display in black, white and red (BWR). White frame, IP67-certified, ideal for price labelling and industrial environments. Up to 10 years battery life. Operation only with Newton Access Point (2.4 GHz) and AIMS management software.

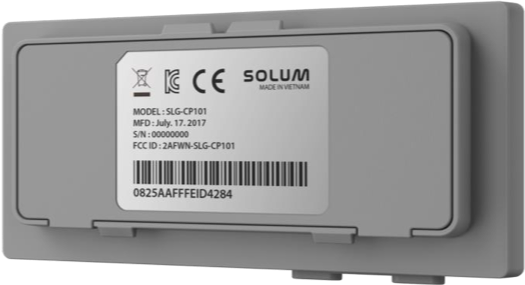

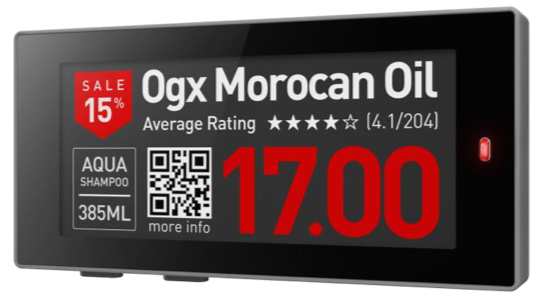

NWT29BWRB
NEWTON 2.9 inch e-Ink label - black, BWR display, IP67
2.9" e-Ink label with colour display in black, white and red (BWR). Black frame, fully graphic display, IP67-certified. Ideal for industry and retail. Up to 7 pages can be displayed, 10-year battery life. Operation only with Newton Access Point (2.4 GHz) and AIMS software.
NWT42BWRB
NEWTON 4.2 inch e-Ink label - black, BWR display, IP67
4.2" e-Ink label with colour display in black, white and red (BWR). Robust black frame, IP67-certified, ideal for warehousing, retail and production. Up to 7 pages can be displayed, 10-year battery life. Operation only with Newton Access Point (2.4 GHz) and AIMS management software.
NWT42BWYW
NEWTON 4.2 inch e-Ink label - white, BWY display, IP67
4.2" e-Ink label with colour display in black, white and yellow (BWY). White frame, IP67-certified - ideal for professional use in industry and retail. Up to 7 pages can be displayed, 10-year battery life. Operation only with Newton access point (2.4 GHz) and AIMS software.

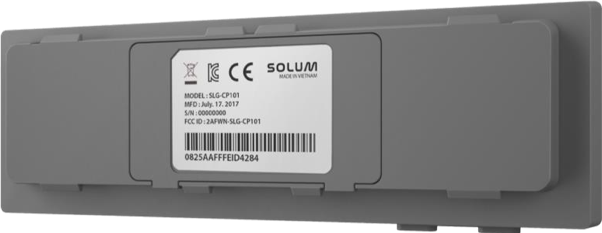

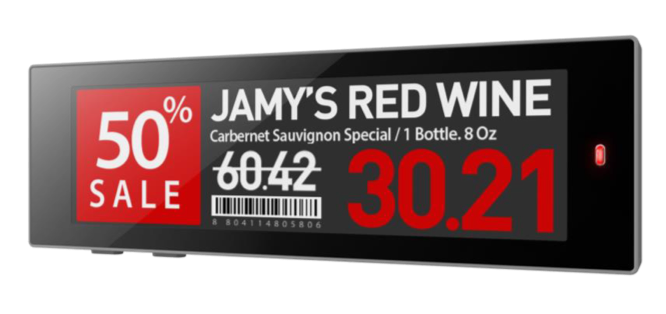

NWT43BWRB
NEWTON 4.3 inch e-Ink label - black, BWR display, IP67
4.3" e-Ink label with black/white/red display (BWR) and black frame. Dust and water resistant (IP67), ideal for harsh industrial and commercial environments. Up to 7 pages can be displayed, 10-year battery life. Operation only with Newton access point (2.4 GHz) and AIMS software.
NWT75BWRB
NEWTON 7.5 inch e-Ink label - black, BWR display, IP67
7.5" e-Ink label with black/white/red display (BWR) and black frame. Ideal for harsh environments thanks to IP67 protection. Up to 3 pages can be displayed, long battery life. Operation requires Newton Access Point (2.4 GHz) and AIMS management software.

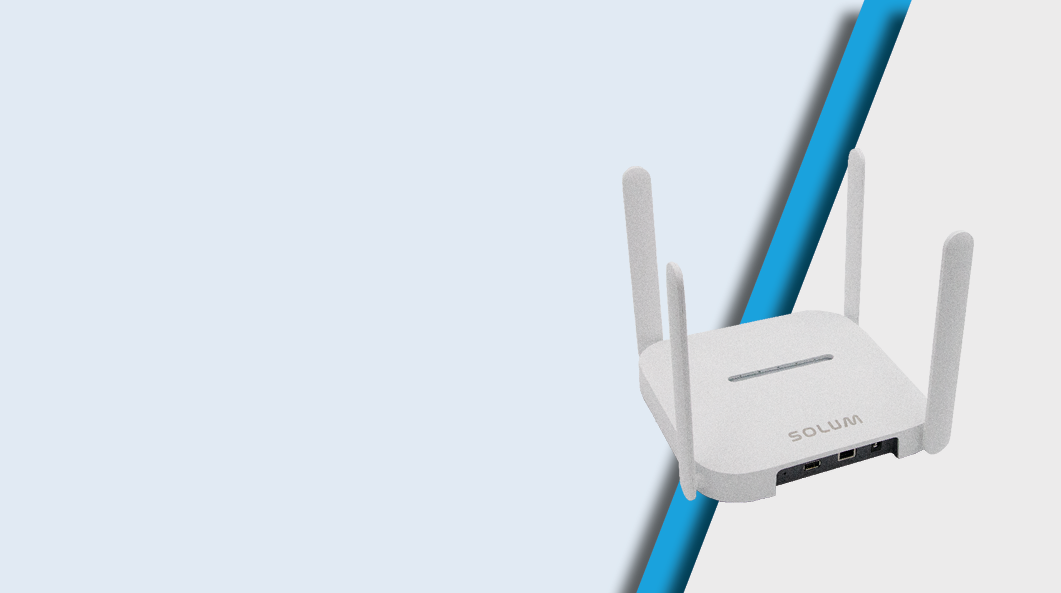

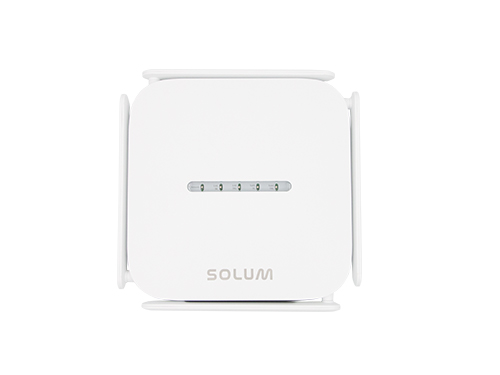

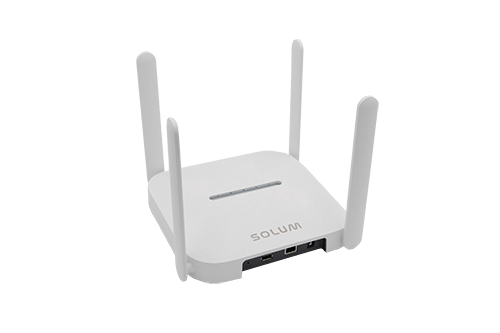

NWT AP 2.4GHZ
NEWTON Access Point 2.4 GHz - Gateway with PoE, incl. mounting plate
Gateway for wireless connection of all NEWTON labels with 2.4 GHz frequency. Communication via secure proprietary protocol. Power supply via Power over Ethernet (PoE). Supplied with mounting plate - power supply unit not included.
Digital e-ink price tags
Digital price tags based on e-ink technology are replacing traditional paper labels. Price and product information are controlled centrally and displayed dynamically on e-paper displays, which use electrophoretic ink in which coloured microparticles become visible depending on the electrical charge. This allows text or graphics to be displayed in monochrome or colour - energy-efficient and easy to read, even in changing light conditions.Centralised control and merchandise management connection
Electronic price tags can be controlled via centralised software. A connection to the merchandise management system is recommended for up-to-date price data. Each item is assigned a label via a defined interface and thus the appropriate shelf space. Price changes are made automatically and in real time - visible directly on the shelf.Flexible display sizes & areas of application
Electronic price tags are available in various sizes - from compact 1.6-inch labels to large-format displays. They can display a wide variety of content such as prices, product details or allergen information and are suitable for a wide range of applications: from village shops to pharmacies and supermarkets.Depending on the model, E-Ink displays show content in monochrome with red or yellow accents, in greyscale or colour. The technology is therefore ideal for clearly structured, visually customisable price communication in the retail sector.
What are electronic price labels?
Electronic price labels (ESL=Electronic Shelf Labels) replace conventional paper labels with E-Ink displays. They display prices and product information dynamically and can be managed centrally. Shelves can be updated at the touch of a button - for example when prices change or the product range changes. The technology combines bricks-and-mortar retail with digital processes and facilitates omnichannel integration
Digital price tags in the ESL starter kit
With the ESL starter kit, users receive a preconfigured complete solution for digital price labelling - ideal for smaller sales areas. Price and item data is transferred directly from the merchandise management system to the software and transmitted wirelessly to the access points of the MultiCom infrastructure.The connected electronic price labels (ESL) react dynamically to changes and update content in real time. Thanks to 868 MHz radio technology, the solution has a range of up to 60 metres. Installation and commissioning are plug & play
Application areas & advantages of electronic price tags
Digital labels are not only used for electronic price labelling and price adjustments for shelf labels in retail. Electronic shelf labels automate and digitalise processes wherever data needs to be available electronically and in real time. As a labelling solution, digital signage also facilitates everyday processes in logistics and industrial companies as well as in the catering, hotel and hospitality sectors and ensures sustainable operations in the long term.
Proven electronic price labelling in the retail sector

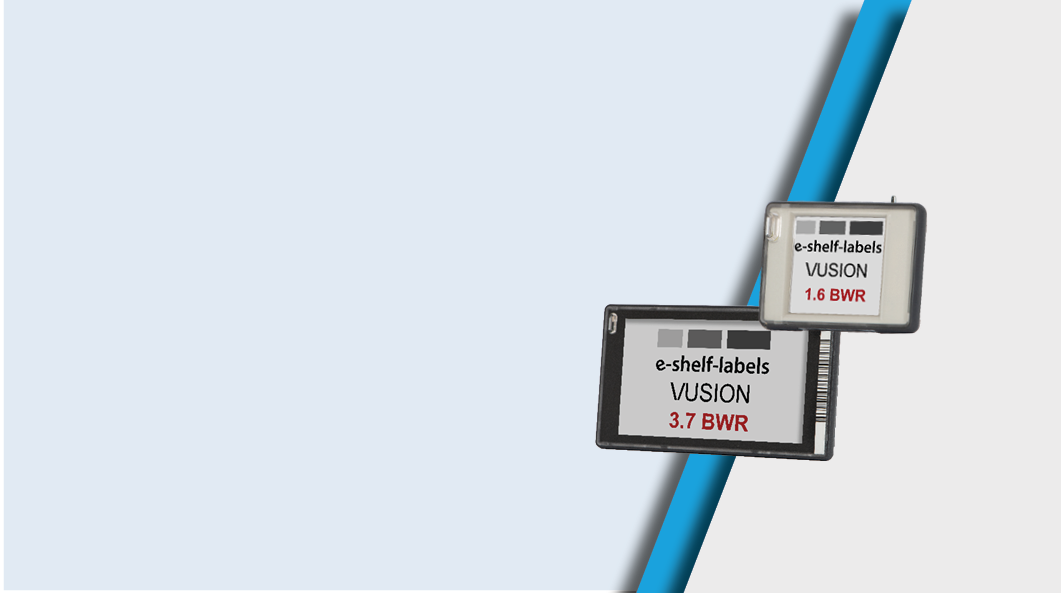

Standardised, up-to-date price labelling is crucial for stationary retail. Digital e-ink labels from the VUSION brand offer robust, waterproof and dustproof solutions with up to five years of battery life (with 2 updates per day). The digital price tags are available in two radio frequencies and can therefore be flexibly integrated. Their flat, modular design is suitable for a wide variety of sales areas.
ESL starter kit: Flexible entry into digital price labelling
The ESL starter kit offers a scalable solution for electronic price labelling in retail. Digital price tags of various sizes can be added on a modular basis, as can additional access points. Paperless labelling strengthens sustainable processes and reduces errors in inventory management by centralising the control of all labels.Interactive interfaces such as QR codes enable additional product information to be displayed - and promote a digital customer journey directly at the shelf.

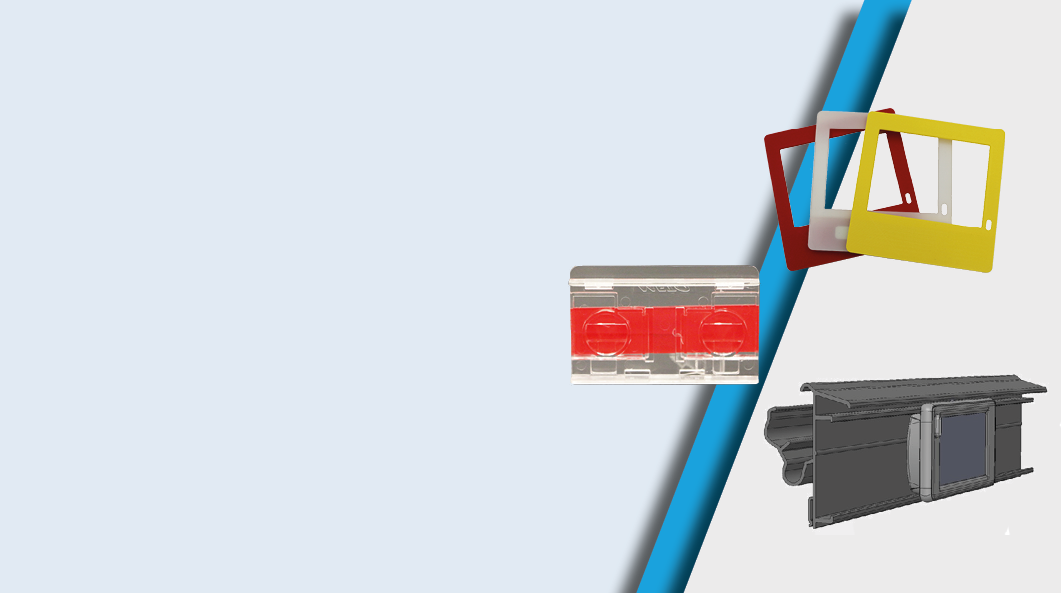

In our shop, you can buy digital price tags individually or in an ESL starter kit. We also offer a wide range of accessories such as suitable brackets and mounting solutions for your electronic display modules.
