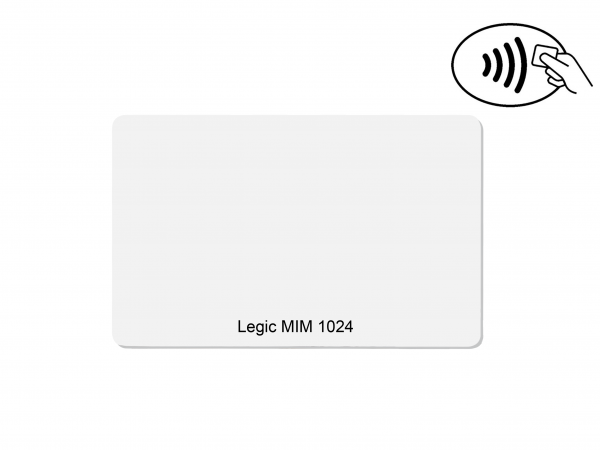

LEGIC MIM 1024 white

LEGIC MIM 1024, Chipkarte weiß blanko unkodiert
85,60mm x 53,98mm x 0,81mm glänzend laminiert

Chip manufacturer: LEGIC®
Product: Prime MIM1024

Memory:
EEPROM size: 1024 bytes
Write endurance: 100,000 cycles
Data retention: 10 years
Organisation: dynamic
RF-Interface:
According: LEGIC
Frequency: 13.56 MHz
Baudrate: < 100 ms (for 32 bytes)
Anticollision:
Operating Distance: up to 10 cm
Please note: Max. reading range depends on used RF standard, the
requirements of national spectrum management
authorities, reader application, antenna, transponder and
surroundings.

Security:
- 4 bytes unique number (MCD + MSN)
- The communication with the security module follows the LEGIC
Rules. The LEGIC Rules cover:
- Initialization
- Authentication
- Authorization
- Data encryption
- Data organization
- Write/read protection

Special Features:
- Data memory
- Passive data memory (EEPROM)
- 1002 bytes user memory area for segments
- Max. number of segments: 127
- Dynamic segmentation
- Variable size of application segments
